DAIWA SEALINE SL50SH SERVICE and Maintenance - SL50SH

[REEFMAN]

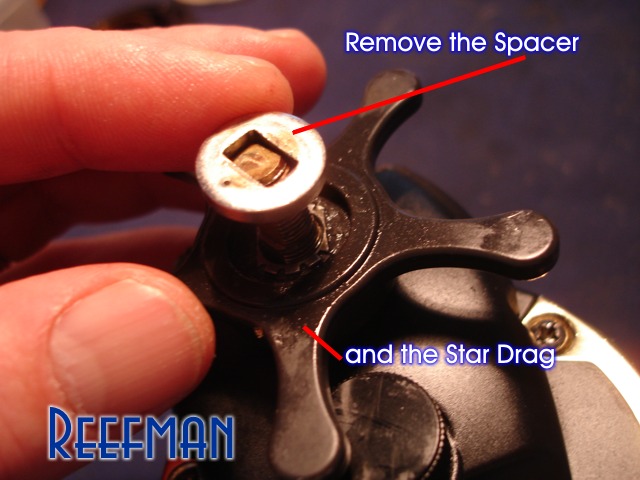

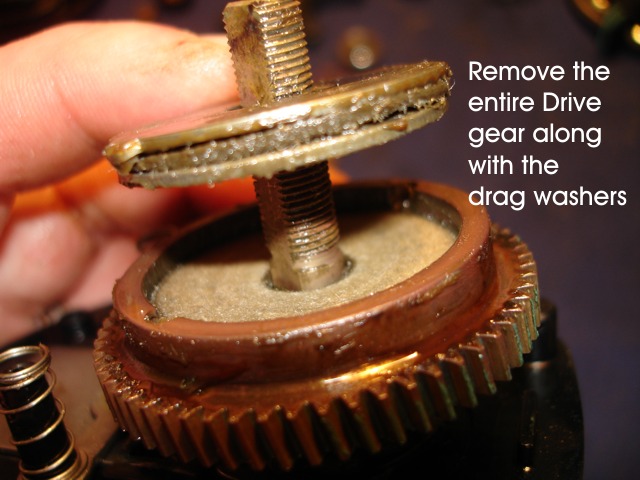

A photographic tutorial on how to Service a DAIWA SL50SH...











































































































[REEFMAN]

DAIWA SL50SH BEARINGS

RHSide Spool Bearing            7x14x3.5
LH Side Plate bearing            4x11x4
Bottom Drive shaft bearing    7x14x3.5
Top Drive shaft bearing            8x16x5
Cast Control bushing            4x8x6

To upgrade the reel bearings, switch to Abec 5 Ceramics... makes a huge difference! Also replace the Cast Control bushing with a bearing... it becomes a different reel!!

[REEFMAN]

Boca bearings

http://www.ultimateangling.co.za/index.php/topic,1542.0.html

[deenamoodley]

thanx reefman

amazing tutorial as usual

[Weskus Wayne]

Awsome stuff Reef,

Another for my book....DO IT YOURSELF YOU LAZY ASS....lol !!!

[UmdlotiOnDad]

Hi Reefman,

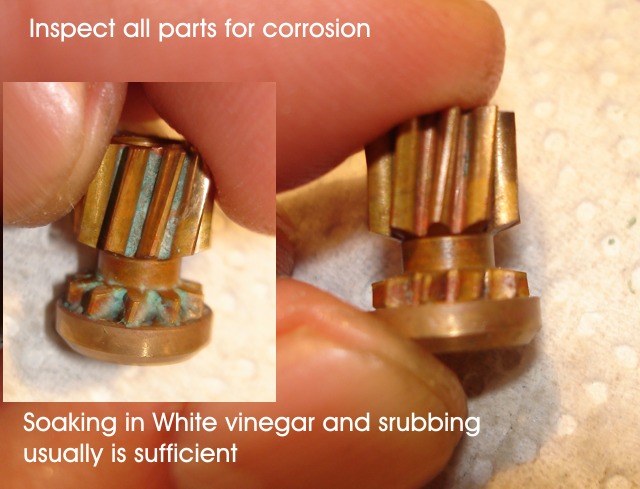

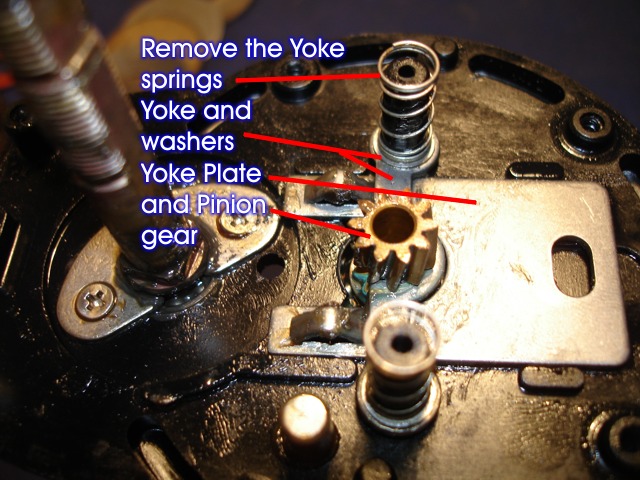

The pic under the close up of the pinion gear, the part labelled 1, where does it go?

Shot for the tutorial. Beeeg help!![size=78%] [/size]

[REEFMAN]

Hi Reefman,


The pic under the close up of the pinion gear, the part labelled 1, where does it go?

Shot for the tutorial. Beeeg help!!

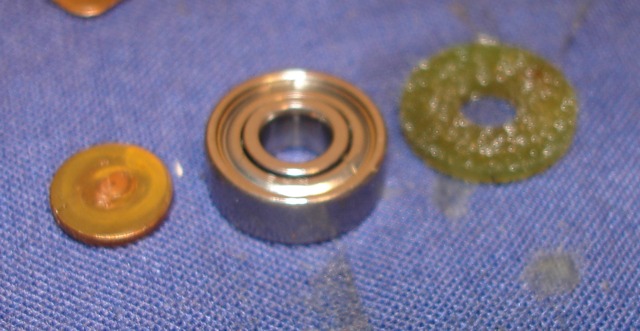

You talking about this no. 1 part?

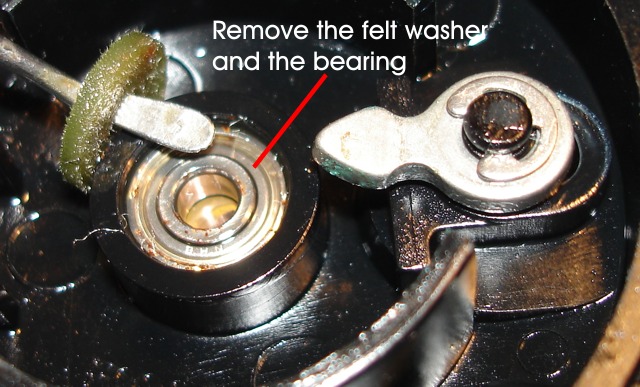

It fits into the LHSide plate underneath the bearing (#2) and the felt washer (#3).

Like this... the yellow patch in the centre of the bearing is that little bronze washer (#1).

[UmdlotiOnDad]

Great.


Big thanks for your help.


Cheers

[UmdlotiOnDad]

Hi Reefman,

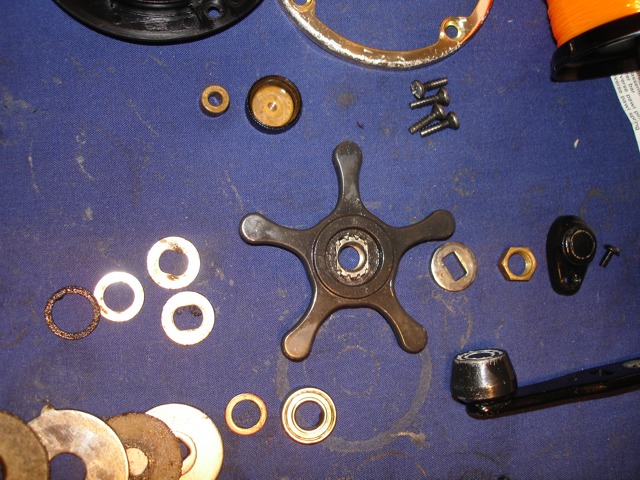

Heres the left overs after i put everything back again.


Any idea whats missing what?


Cheers
Nic

[isivuba]

Here's a parts diagram.

[REEFMAN]

The top piece...? got no idea, show us a pic of the other side of that piece?

2nd: Brass washer that fits inside the Cast Control Cap - see the Yellow piece inside the Cast Control cap?



3rd: Ratchet washer that fits underneath the Cast Control Clutch lever

Some of these pics below are from a Grandwave, but the same principle applies....





4th: Teflon bushing that fits onto the spool shaft (This is what the Grandwave looks like, but the SL50 should be very similar).





5th: Clutch spring that fits inside, onto the Cast control lever

[REEFMAN]

.Clutch spring

[UmdlotiOnDad]

Wow Thanks a million.




It all makes sense now.




[REEFMAN]

That top piece... is it thin like a washer?

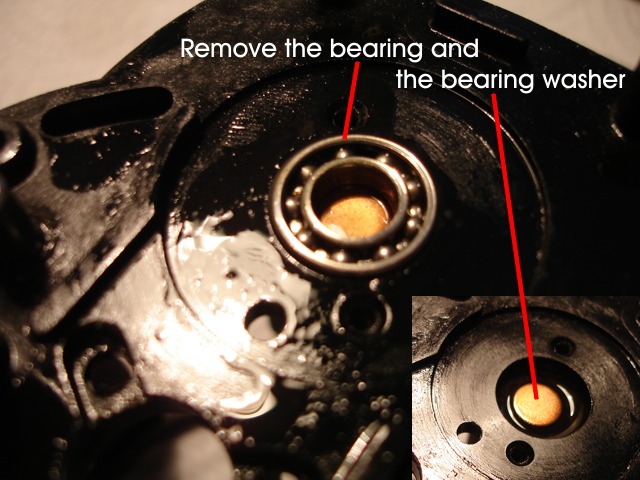

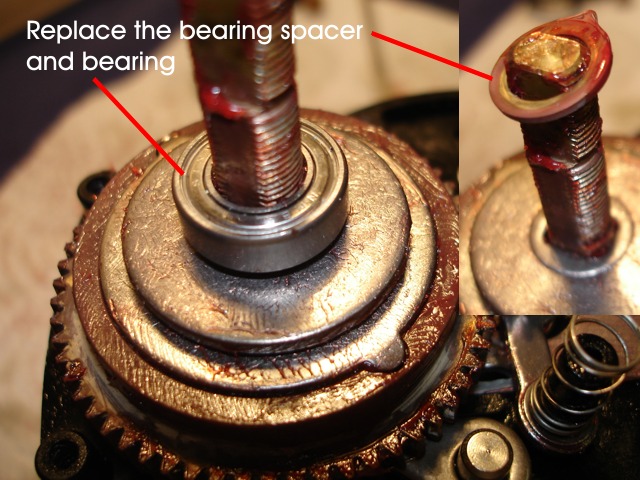

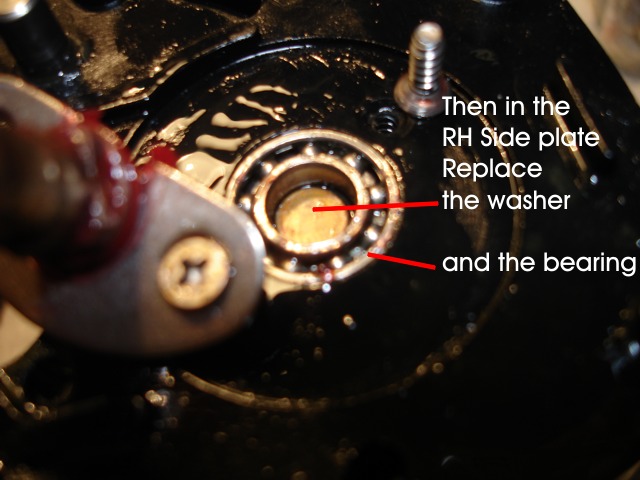

Then probably the washer that fits under the bearing in the drive shaft...

[REEFMAN]

Anyone got an SL50 that needs servicing? This is one of the first tuts I did back in 2007, needs to be redone... it's not comprehensive enough?! !

[tkei]

Reefs pitty I am not in Jhb. I have my sl50 thats darg is snatching and needs redoing, and I just dont have time anymore. Work and kids gettng to me. For once I may have to send it to a shop to be done.

[Tima]

Reefman

Any idea as to where I can get a bearing to replace the Cast Control bushing 4x8x6 as the only ones I can find on the net are all one way?

Thanks

Tim

[REEFMAN]

Use 2  4x8x3 bearings to make up the height of 6mm.

[Tima]

Thanks Reefman.

[UmdlotiOnDad]

Howzit Reefman,


As you mentioned all left overs were correct.


Reel is back to normal but:

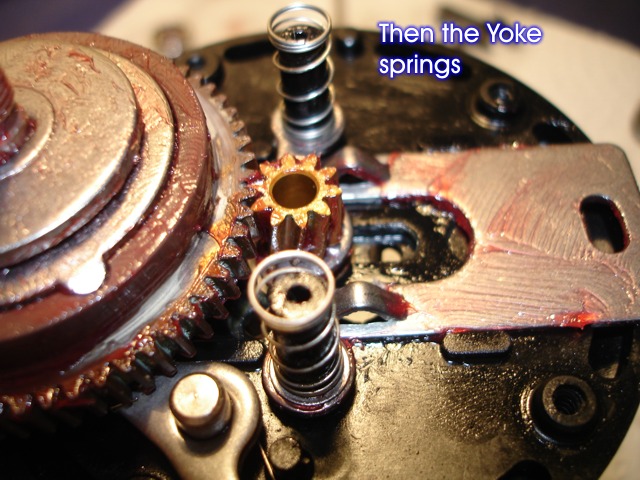

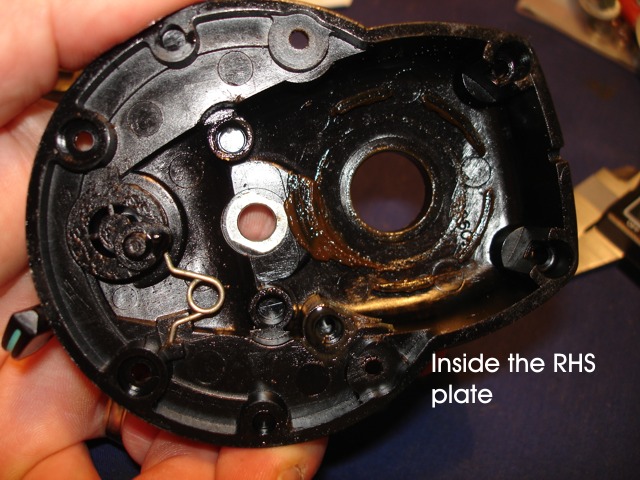

1) Is there any specific way the yoke plate should be set when putting the RH side back together?  I'm able to engage free spool but something is not sitting right as there is a slight knocking sound when i turn the handle in free spool and when i disengage free spool it feels the same as a car slipping gears, when i start to turn lever. Not a smooth as i would like. The clutch cam and spring were set back as the same in your pic. Any thoughts?

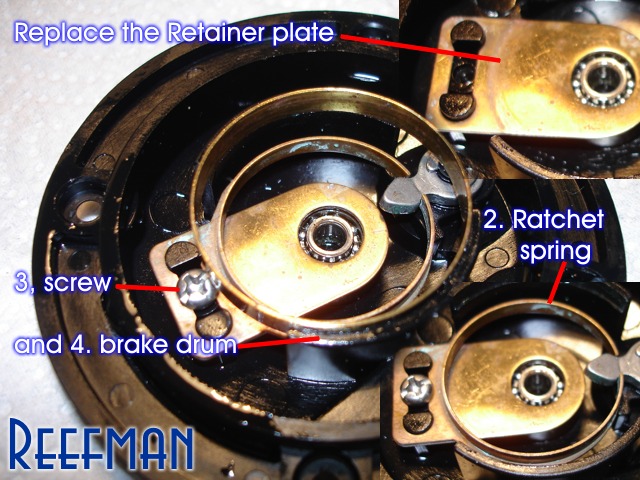

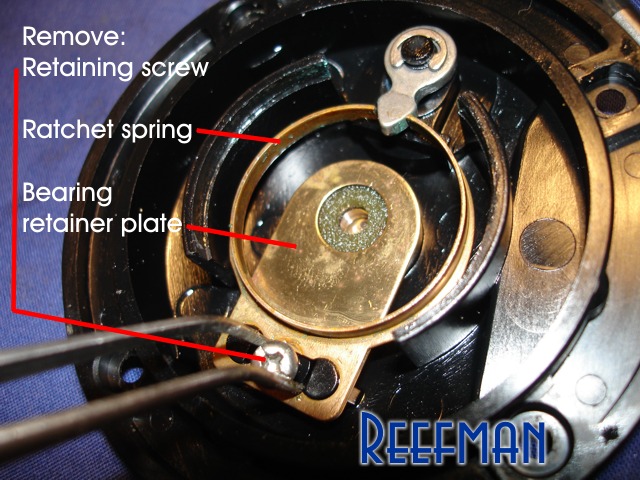

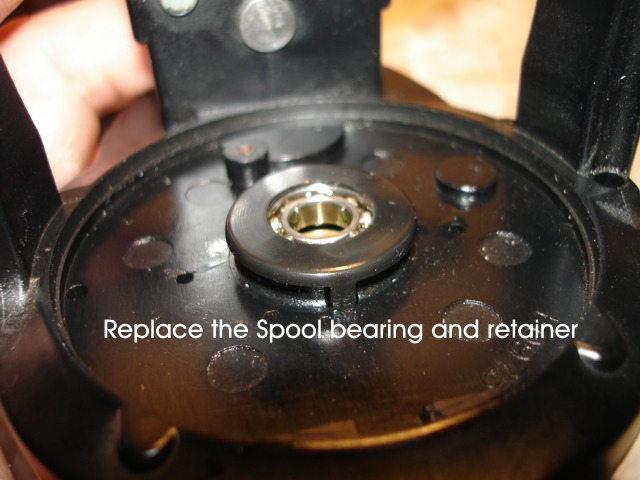

2) The ratchet on the LH side is also not engaging. The bearing had actually seized and had to be forcefully removed so components might have been bent slightly. Retainer plate is defiantly not straight. Could this be the cause?


Cheers
Nic
