Author Topic: Shimano Sustain 5000FG - Service and Maintenance Tutorial (Read 44229 times)

REEFMAN · « **on:** May 27, 2012, 07:00:01 PM »

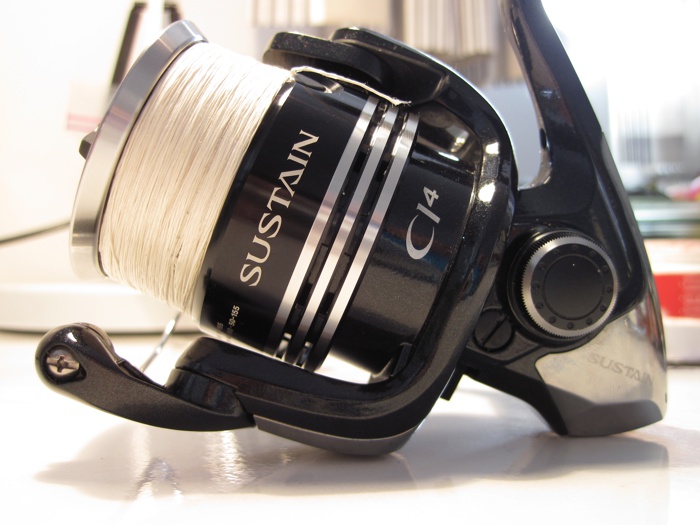

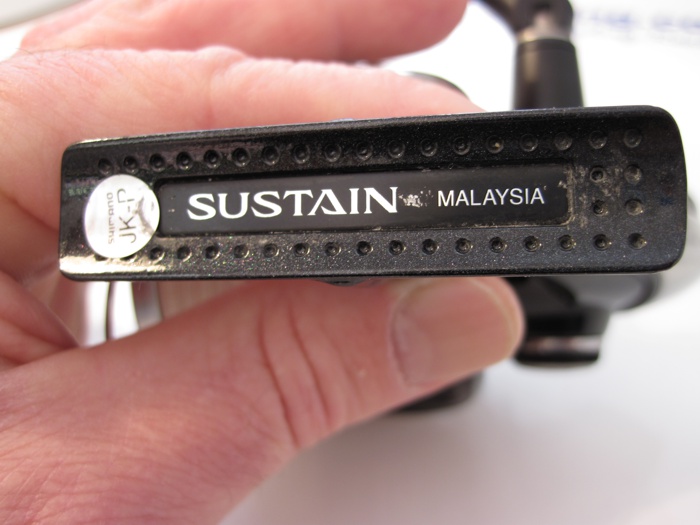

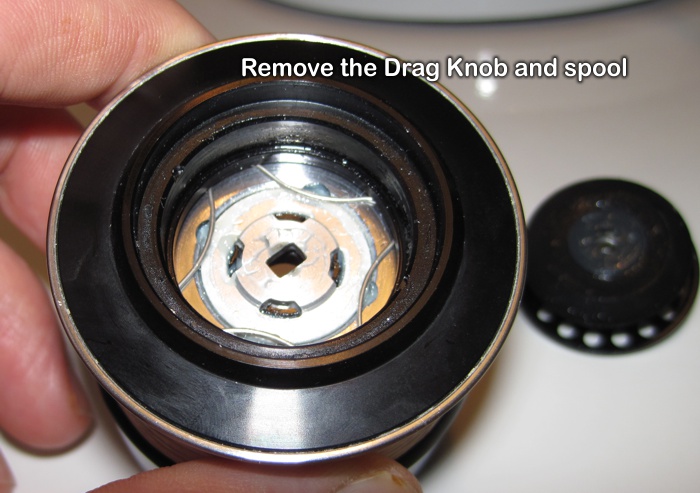

Here is a Comprehensive Photographic Tutorial on how to Service and Maintain a Shimano Sustain FG5000.
This tutorial could be used for all the Sustain models - bar minor differences, they are pretty similar.

DO NOT unscrew the 2 smaller screws! They open up the Anti-reverse bearing with it's springs and parts.

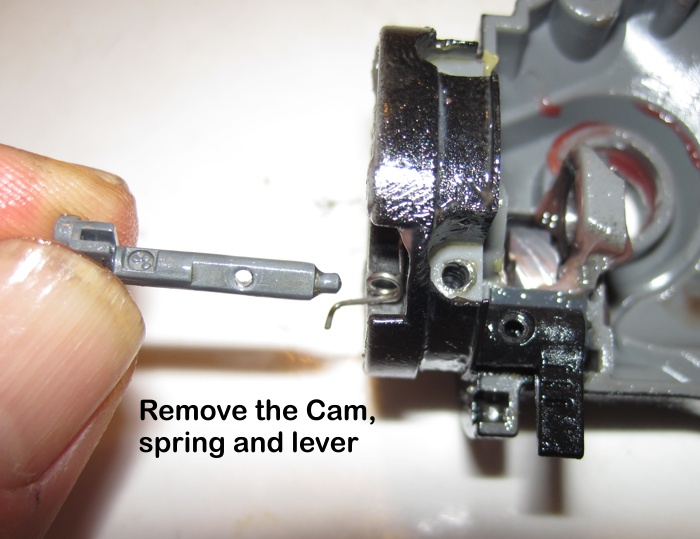

At this point, you might choose to stop, because from here onwards, the Service becomes fairly complex and tricky.
With the gearbox exposed, you can use a toothbrush soaked in Benzine to remove all old grease, and dirt. Once done, allow to dry and regrease thoroughly.

For those who want to go further into a detailed service... Let's go!

Remove the Retainer plate at the back of the reel.

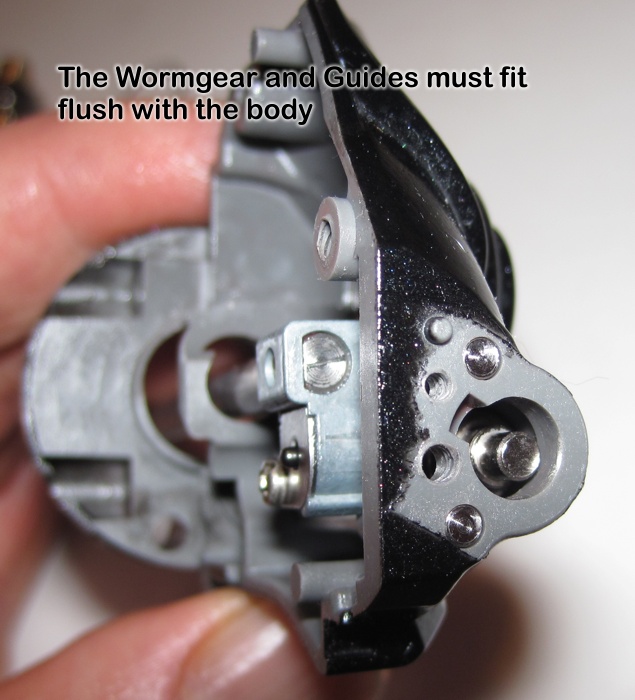

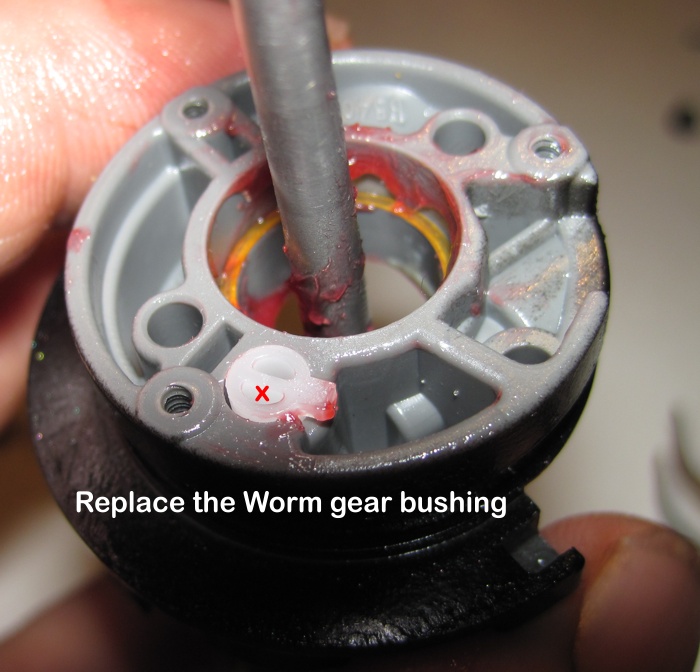

The Worm gear and Bushing

Clean all parts in Benzine, either soaking or scrubbing with a toothbrush. Allow to dry properly, then brush generously with grease.

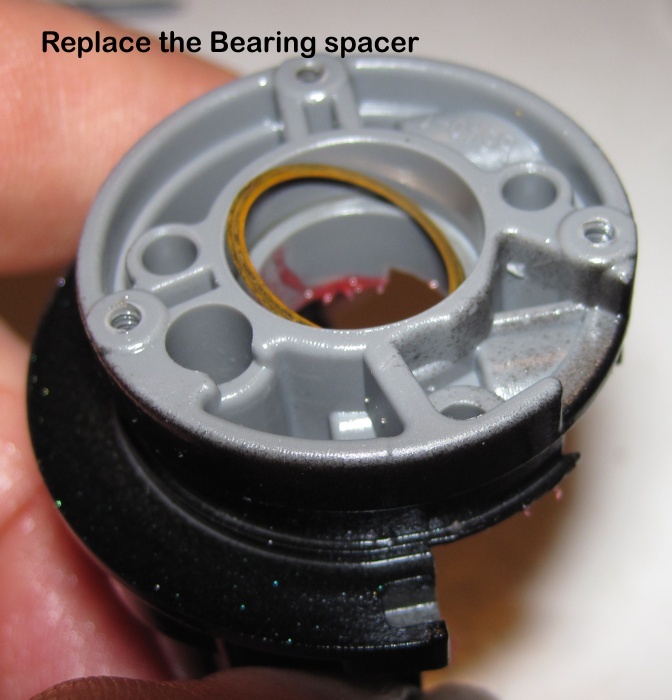

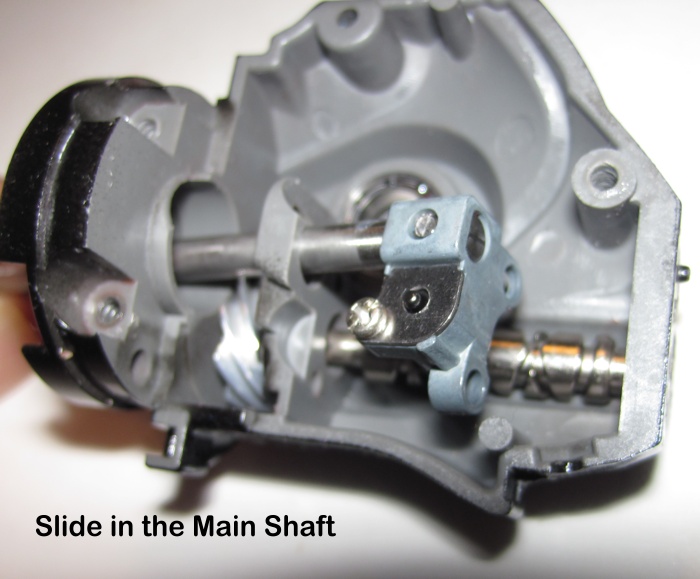

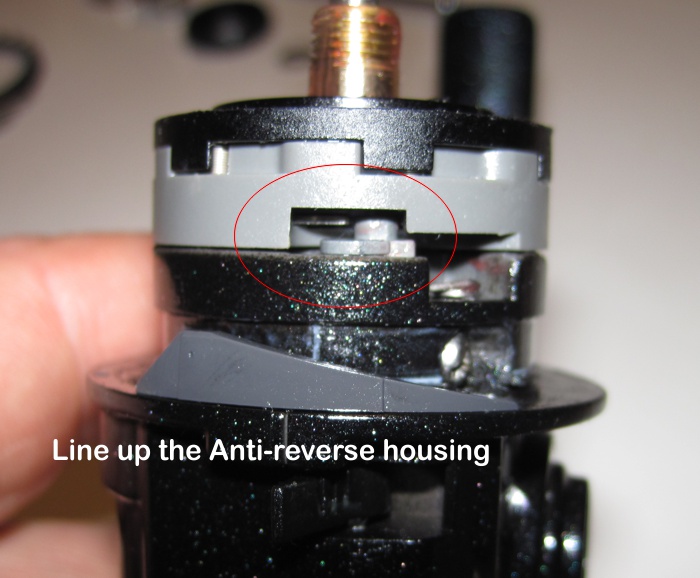

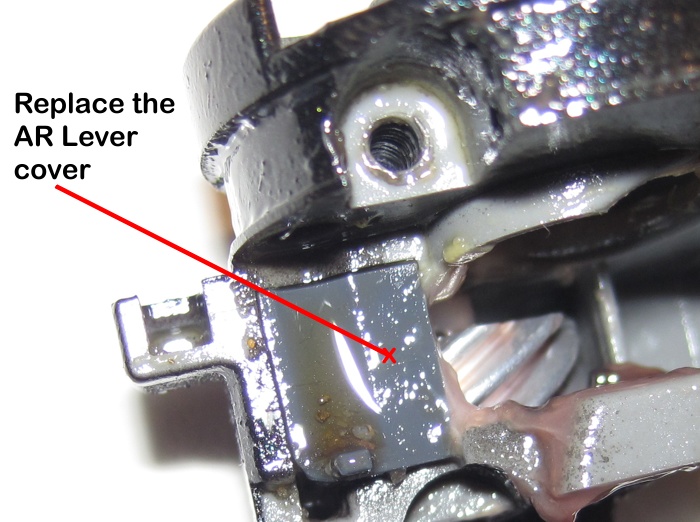

RE-ASSEMBLY - Put it back together!!

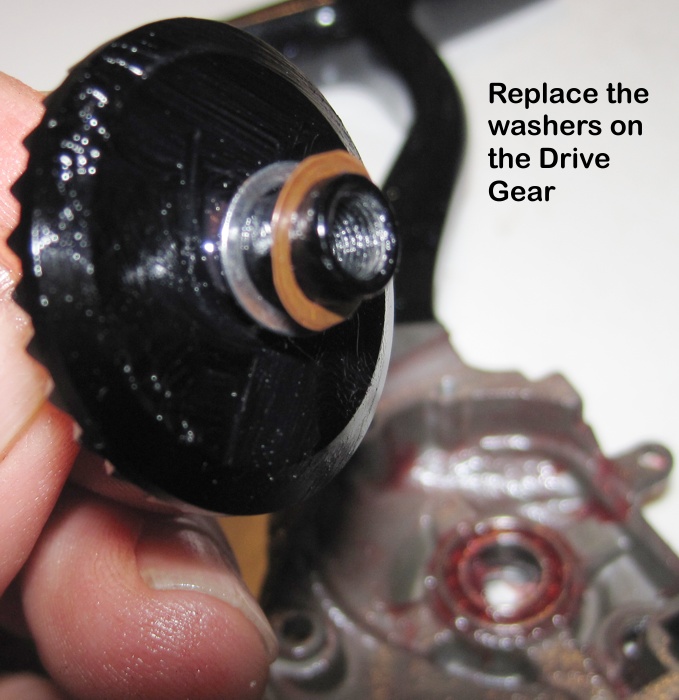

Now for the Drive Gear...

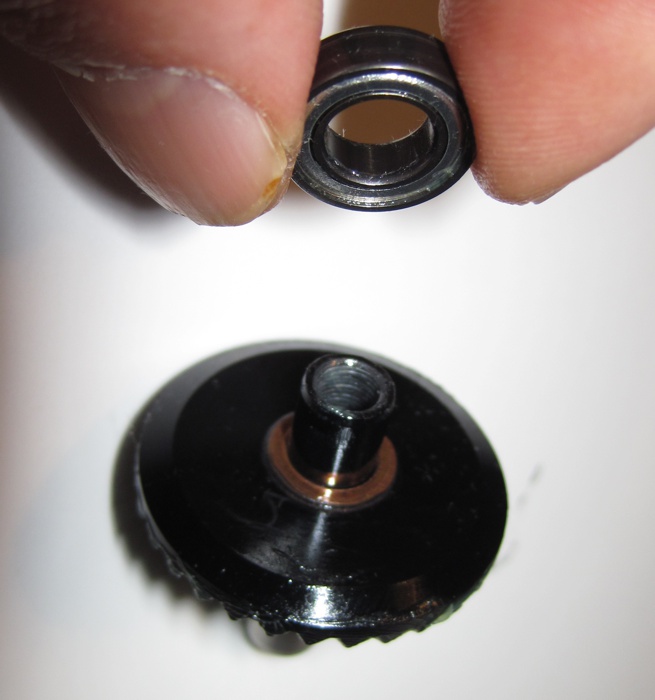

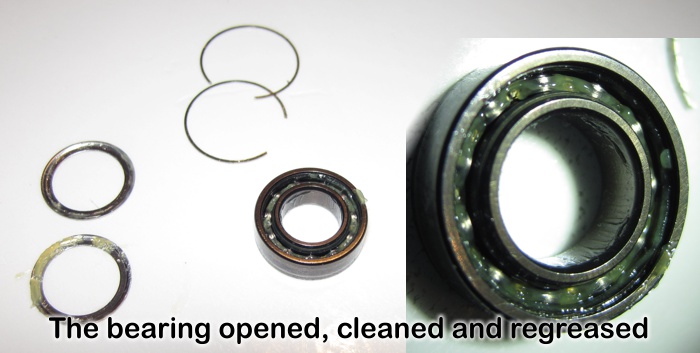

Regrease and replace the Main bearing on the Drive gear

Awesome...

Now... for those who want to take it a step further....

HANDLE SERVICE

All pretty straight forward. No great problem to service the Handle.

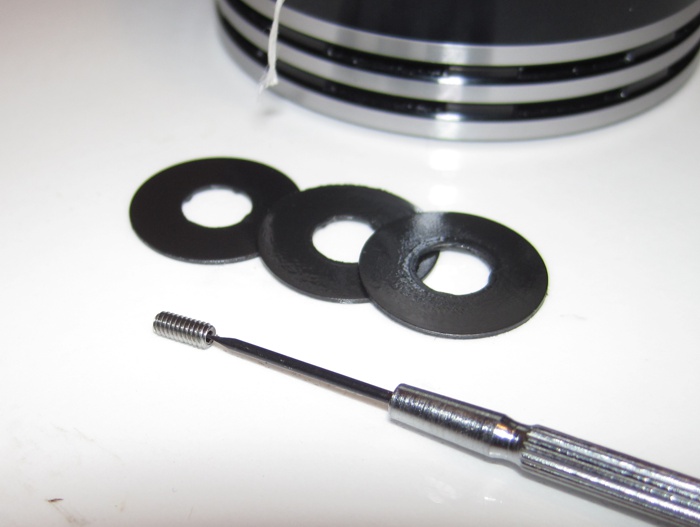

DRAG WASHERS

Also pretty simple.
These are oiled felt washers. Do not grease them, they were meant to be oiled with a quality oil.

Now for the LINE ROLLER - A spot on most reels that is most often sadly neglected.

The parts that make up the Line Roller...

into

To re-assemble, slide the bearing into the Grey Bushing from the lipped side. Then slide the Bushing into the Line roller from the thick side.
NB:
The Thicker side of the Bushing and the Line Roller both face the Screw side of the assembly.
Before assembling this system, lube all the parts with a good Oil.

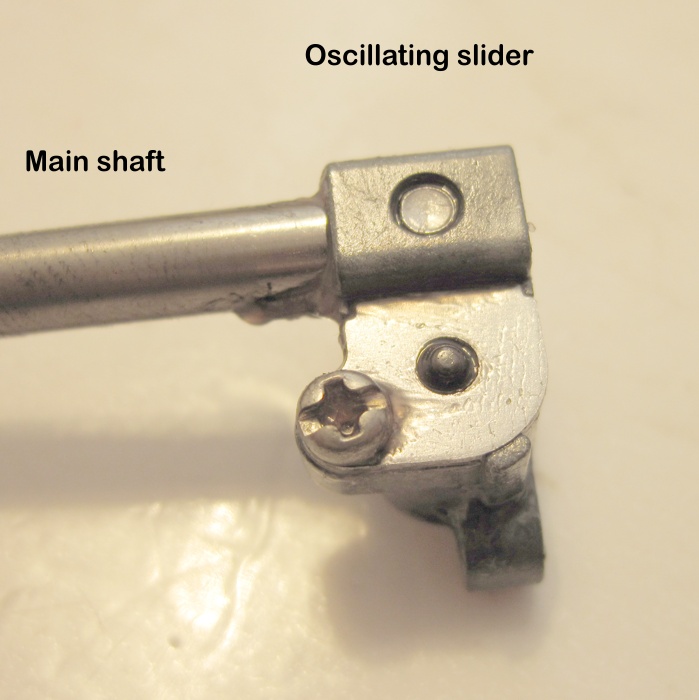

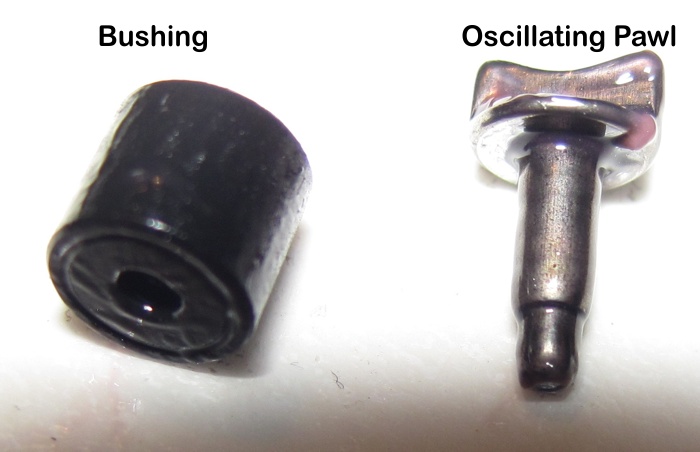

THE OSCILLATING SLIDER

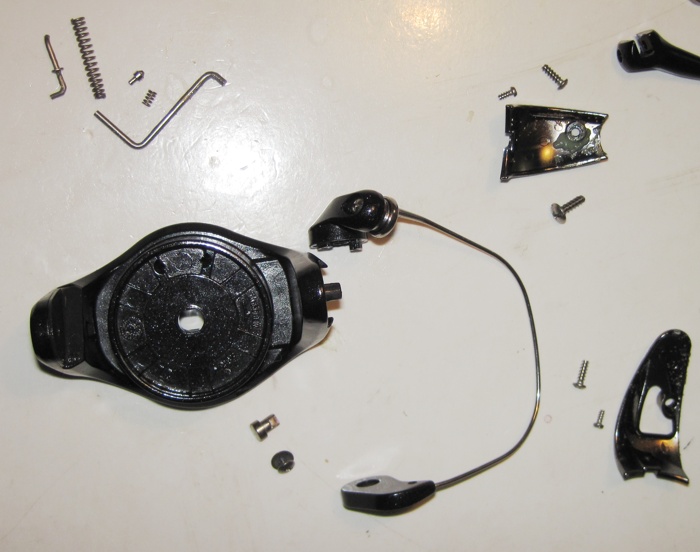

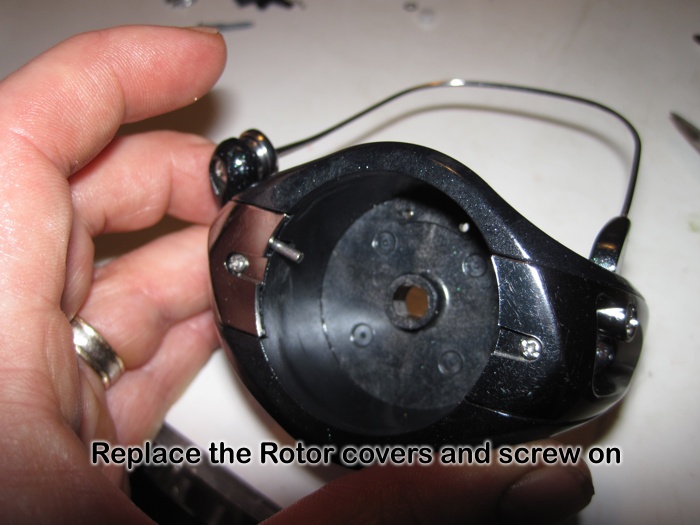

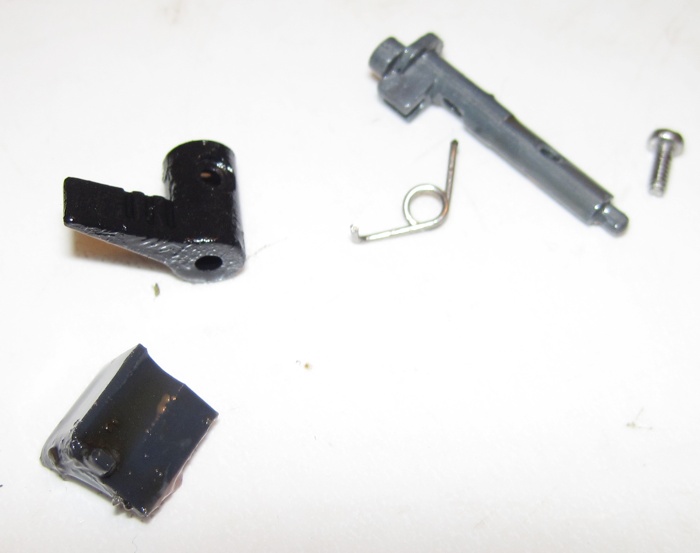

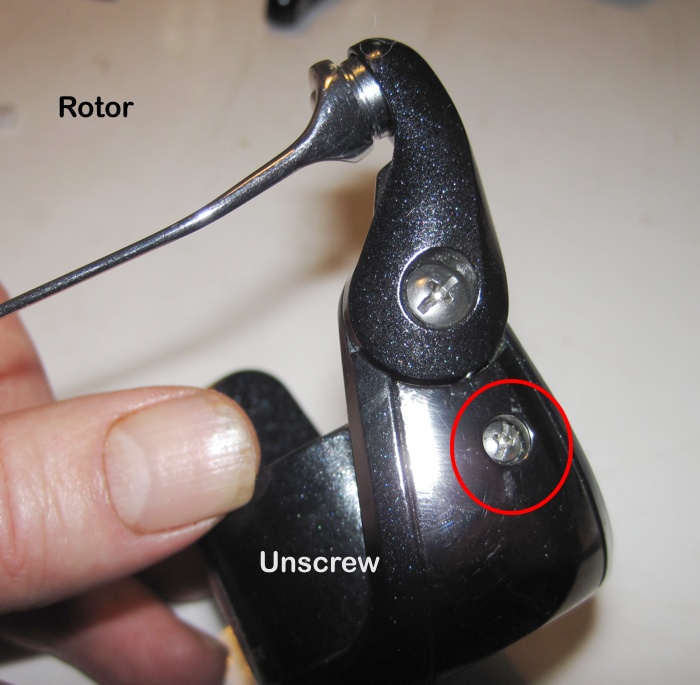

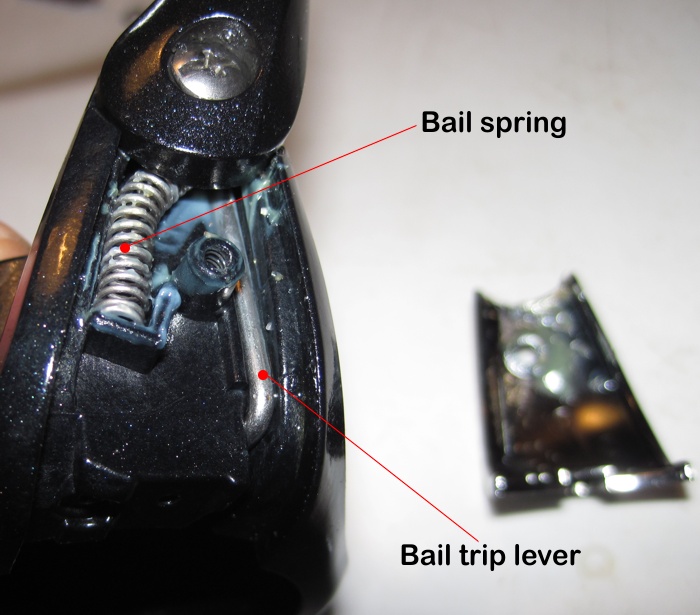

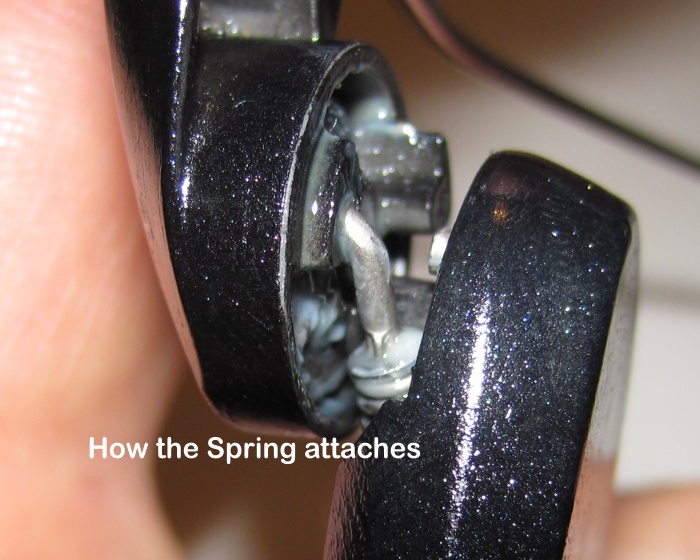

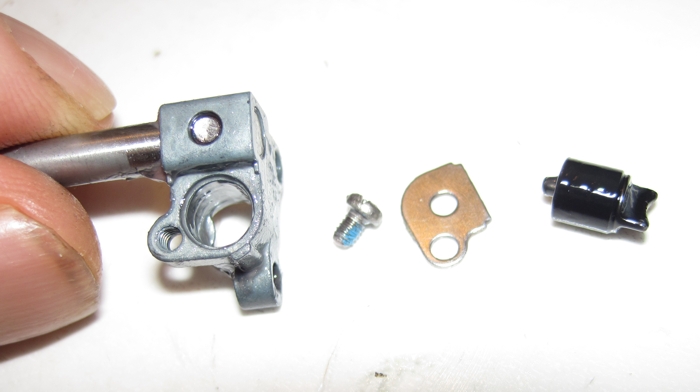

THE BAIL ARM MECHANISM

Now you can unscrew the top screw...

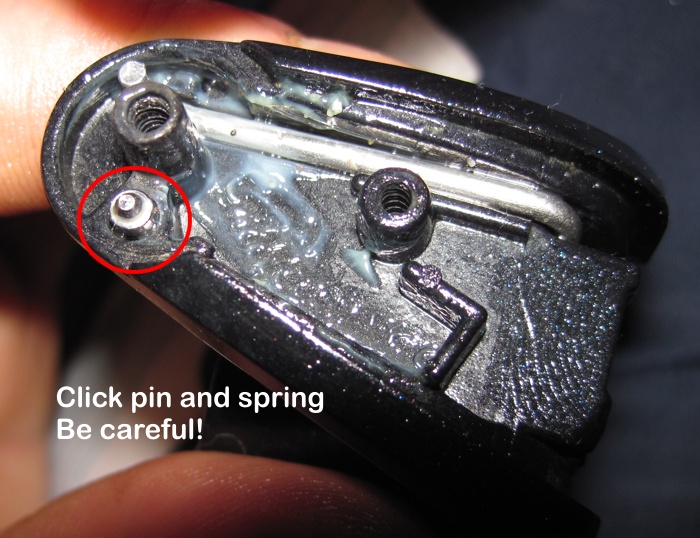

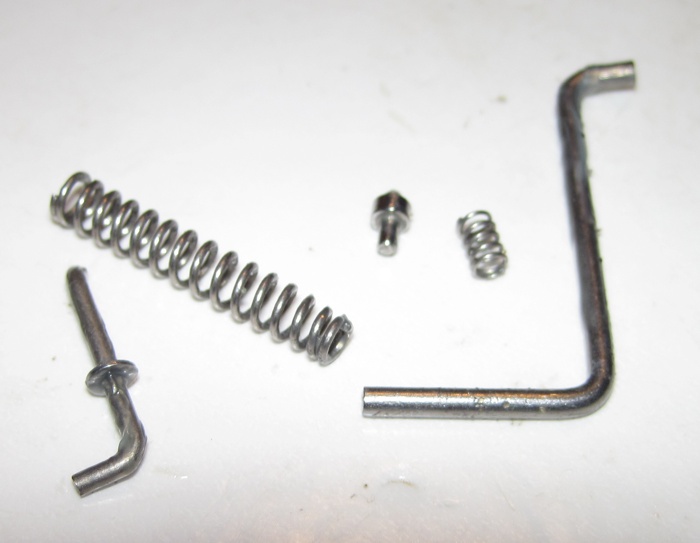

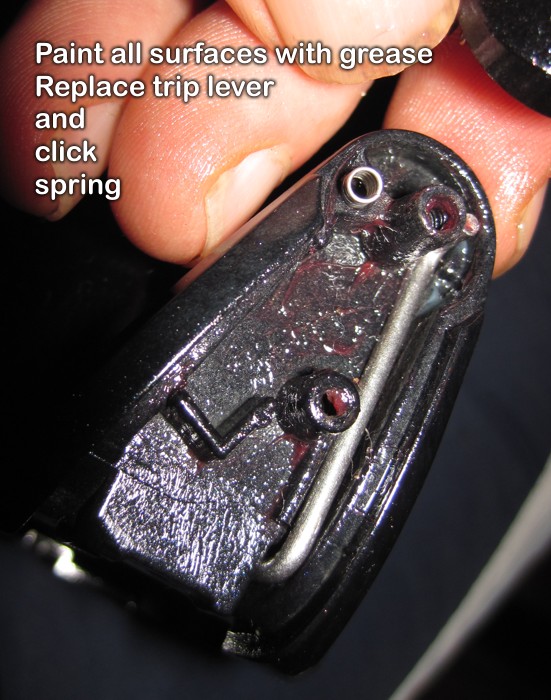

Be careful that you don't lose the CLICK PIN AND SPRING WHEN OPENING!!

Now you can thoroughly clean the Rotor of any beachsand and dirt. Scrub all parts with Benzine, and regrease lightly.

Now that's what you call a thorough Service!!

All done...!

BEARING SIZES IN THE SUSTAIN:

You won't find this info anywhere....

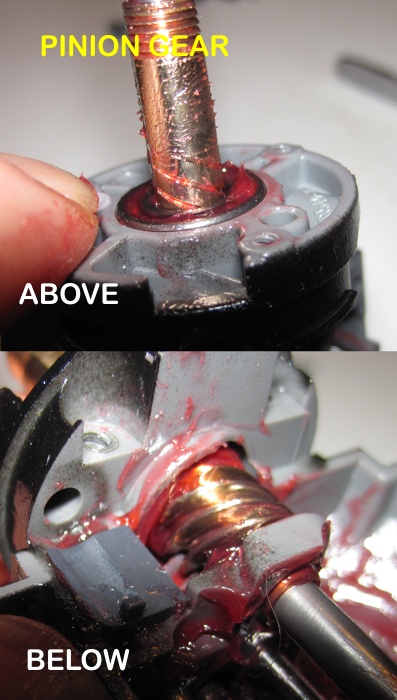

Pinion Gear -
Inside Pinion Gear -

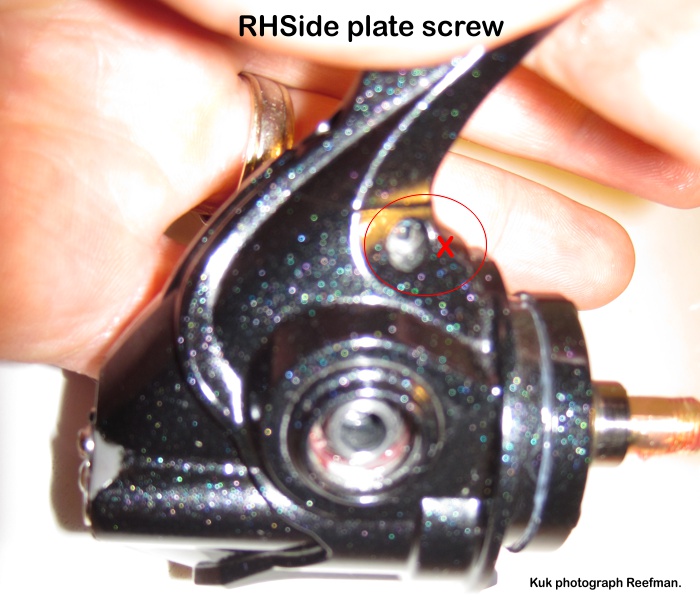

RHS Plate -
LHS Plate -
Handle knob inside -
Handle Knob outer -
Drive SHaft -
Bail Roller -

Wormgear Back bushing -

If you're interested in getting this Info, send me a PM.

REEFMAN · « **Reply #1 on:** May 28, 2012, 03:37:06 PM »

The schematics...

Poenskop · « **Reply #2 on:** May 28, 2012, 04:32:59 PM »

This will come in very useful in the future. Can't believe that bearing got damaged so quickly. It just shows that you need to service your reel out of the box.

Sailor · « **Reply #3 on:** May 28, 2012, 04:40:33 PM »

Thanks Reefz. Great tutorial as usual. What are the weak points of the FG 5000.

WalkersKiller · « **Reply #4 on:** May 28, 2012, 04:48:07 PM »

Awesome Reefz

REEFMAN · « **Reply #5 on:** May 28, 2012, 04:51:22 PM »

Quote from: Poenskop on May 28, 2012, 04:32:59 PM

This will come in very useful in the future. Can't believe that bearing got damaged so quickly. It just shows that you need to service your reel out of the box.

Ya for sure Louis... a bit of grease in the frame would have sorted that quickly.

Quote from: Sailor on May 28, 2012, 04:40:33 PM

Thanks Reefz. Great tutorial as usual. What are the weak points of the FG 5000.

Will be doing a review of the Stradic and Sustain in the near future. Off hand, there aren't any "weakpoints" as such, in this reel, it's pretty awesome! It's the smoothest reel I have ever felt, but I will go through the reasons for this in the next article.

Sailor · « **Reply #6 on:** May 28, 2012, 05:11:37 PM »

I thought so as well when I saw the photos. Thanks

Sailor · « **Reply #7 on:** May 28, 2012, 05:30:36 PM »

Rough estimate on cost?

REEFMAN · « **Reply #8 on:** May 28, 2012, 05:34:44 PM »

RR R3000

Sailor · « **Reply #9 on:** May 28, 2012, 05:38:32 PM »

Thanks. Receiver owes me quite a bit and I am looking for a new

. A bit pricey but I think I will spoil myself.

Lenny · « **Reply #10 on:** October 28, 2012, 10:44:47 AM »

Super Tut as per usual!

REEFMAN · « **Reply #11 on:** June 13, 2013, 03:40:26 PM »

Ok, have upgraded this thread...

This is now a comprehensive service manual on the Sustain. Can be applied to the Stradic as well, as both reels are quite similar.
It now consists of:

120 Photo's including added:

Bail ARM service
Line Roller service
Entire Gearbox dismantling and re-assembly
Oscillating slider
Anti-reverse Mechanism
Handle Service

Catch1963 · « **Reply #12 on:** November 15, 2013, 07:56:13 PM »

Awesome tutorial. Would not have coped without these pictures and explanations. Many thanks. My reel feels awesome again but I will need a new bearing soon on the small end of the pinion gear. I will pm you for sizes. Thanks once again.

REEFMAN · « **Reply #13 on:** November 18, 2013, 03:54:48 PM »

Quote from: Catch1963 on November 15, 2013, 07:56:13 PM

Awesome tutorial. Would not have coped without these pictures and explanations. Many thanks. My reel feels awesome again but I will need a new bearing soon on the small end of the pinion gear. I will pm you for sizes. Thanks once again.

Glad to be of help. Sent you a PM.

ST(d) · « **Reply #14 on:** November 18, 2013, 04:38:45 PM »

Thanks a million Reefman, Was dreading sending my reel in or having to service it myself. this will help BIG TIME.

Tich · « **Reply #15 on:** April 22, 2014, 07:36:07 PM »

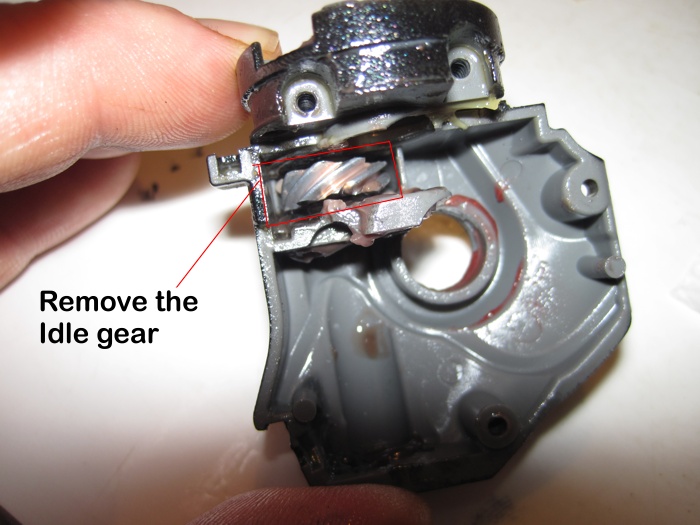

Thanks brilliant work I had my sustain for two years lovely reel .I just replaced main gear and pinion gear . They were really worn I was wondering if I should have done the idle gear I did not notice any ware the paw was slightly worn any comments.

REEFMAN · « **Reply #16 on:** April 23, 2014, 06:17:59 AM »

Tich,

Without looking at the reel, it's difficult to say whether the Idle gear needs replacing as well? It doesn't take as much force as the Main and Pinion gears, so it should be fine.

Tich · « **Reply #17 on:** April 23, 2014, 07:50:17 AM »

Thanks so much it seems to very smooth. I also replaced the lower worm gear bush with a bearing. I must say the reel has been amazing I drop shot almost every weekend wading. Seen to Mozambique outing so was not surprised when I had to replace the set of gears. Great tutorial you put together.

Darshur · « **Reply #18 on:** May 10, 2017, 05:26:45 PM »

Hi Reefman, Apologies for hijacking the thread but as comprehensive as this tutorial is, I know i will mess it up somehow. Any suggestions regarding having my sustain SA10000FG serviced by a reputable person in JHB?

REEFMAN · « **Reply #19 on:** May 10, 2017, 08:56:15 PM »

The only person I wouldtake it to in Gauteng is Craig Neil at CDS Angling in Centurion.
