STELLA 10000FA - Service and rebuild
« on: August 02, 2010, 04:52:13 pm »
Here follows a comprehensive Photo Tutorial an how to Service a Stella 10000FA.




WARNING: Do not try this unless you are accomplished with servicing reels!

A spinning reel as complex as this one is nowhere near as easy to service as a Multiplier. It has hundreds more parts and is not easy.

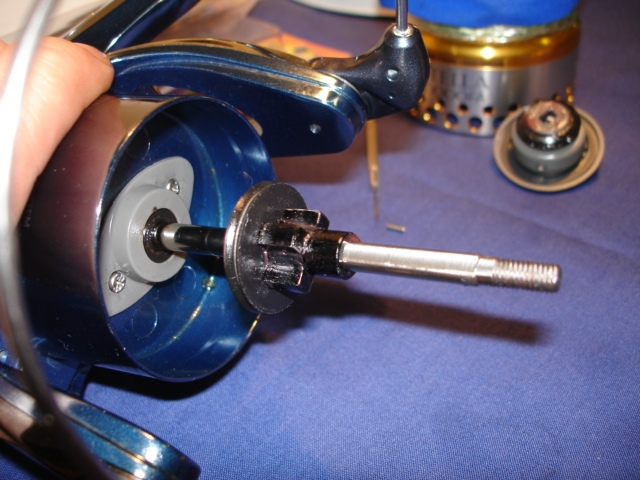

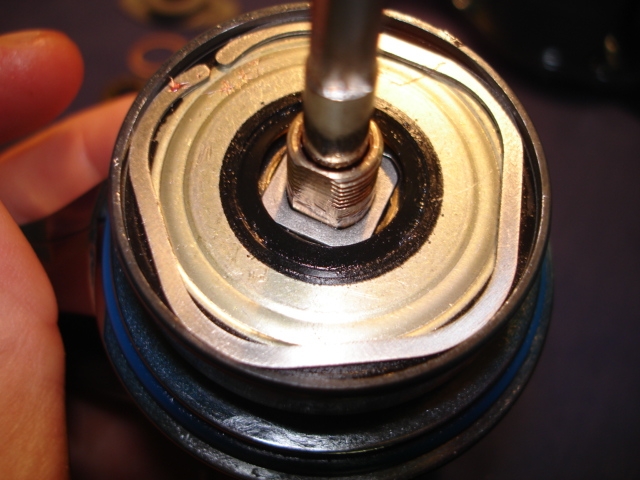

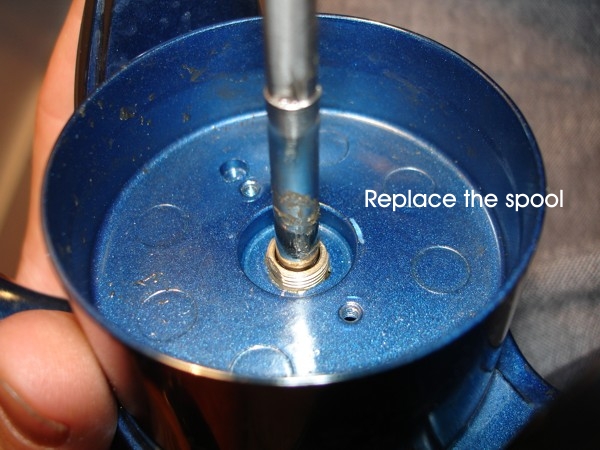

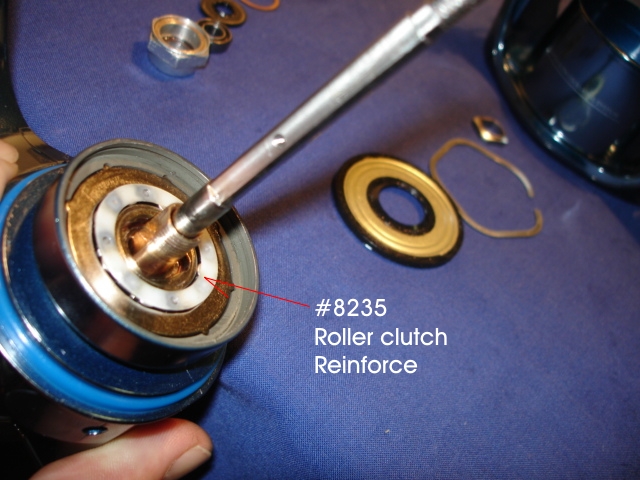

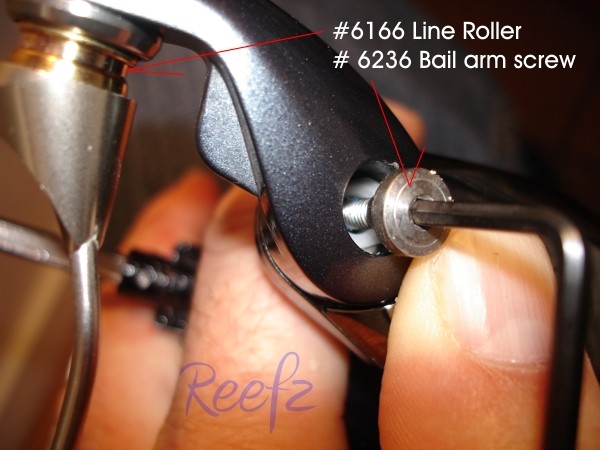

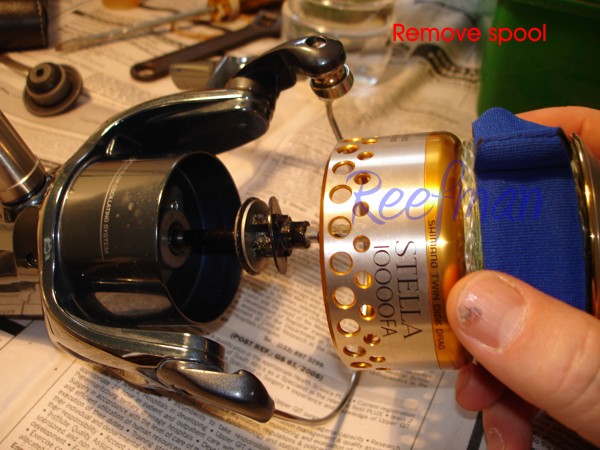

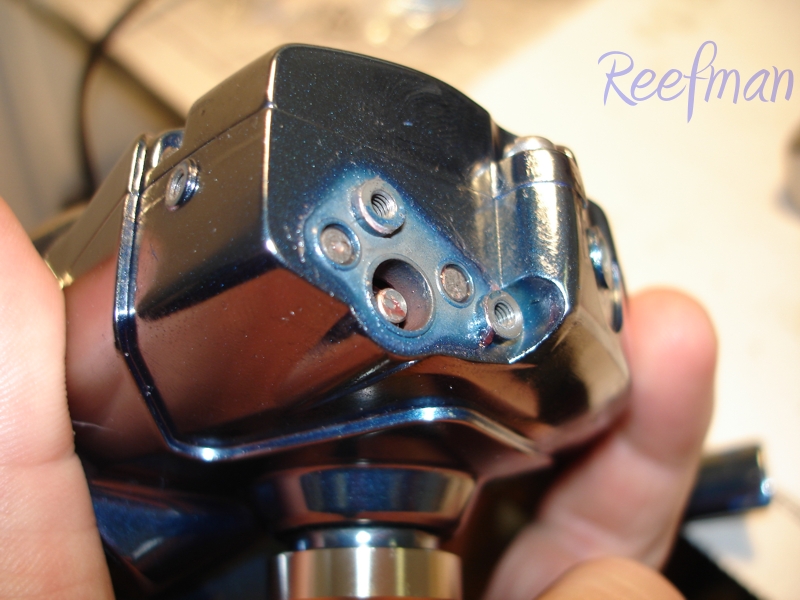

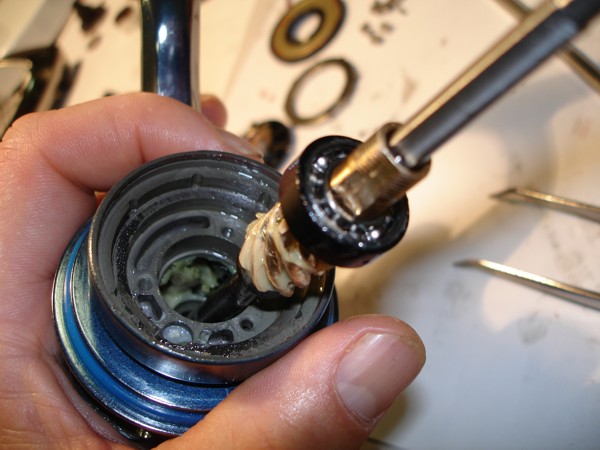

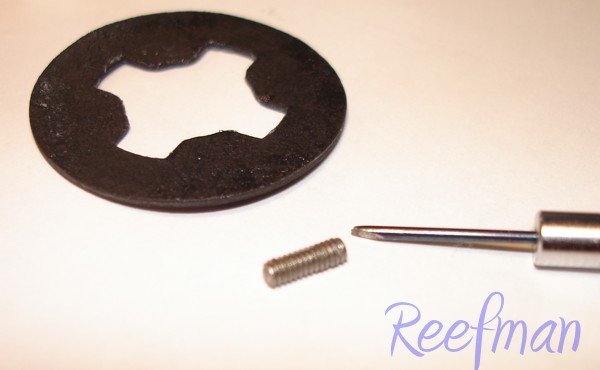

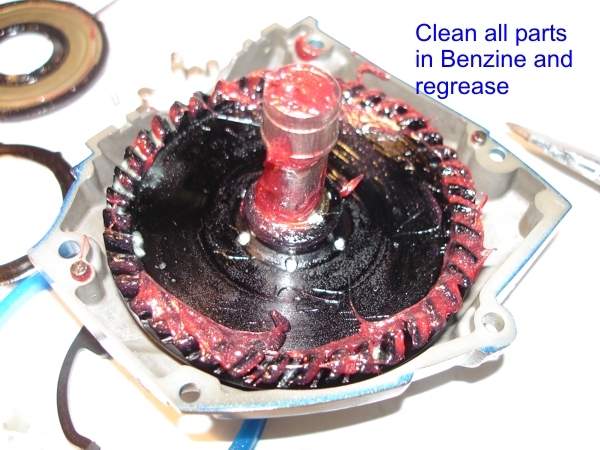

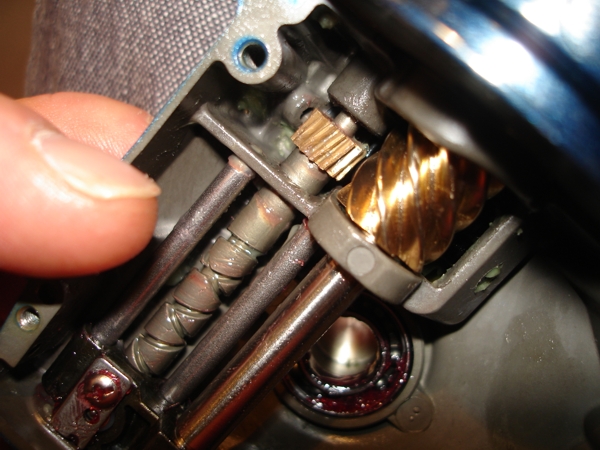

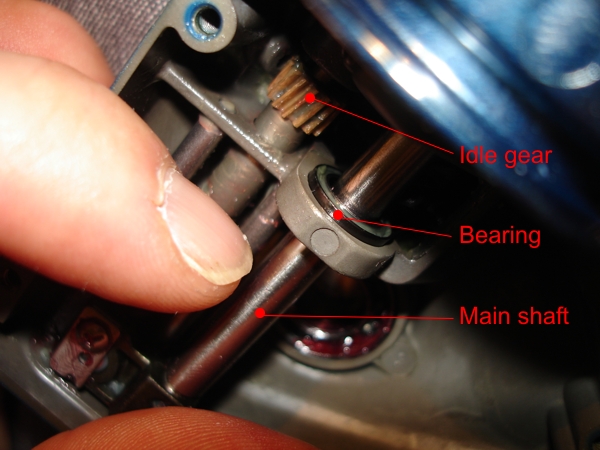

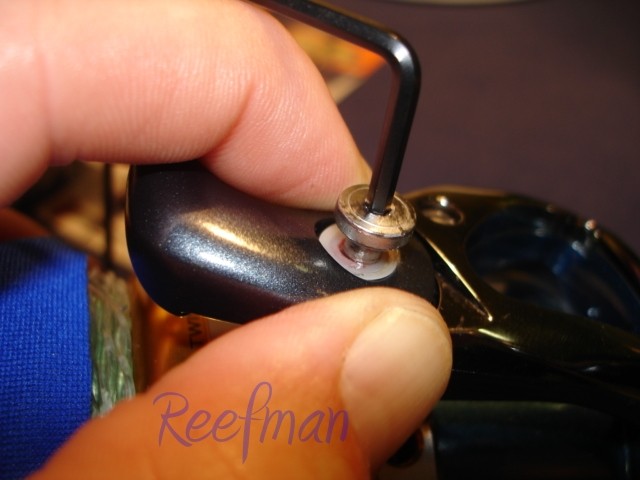

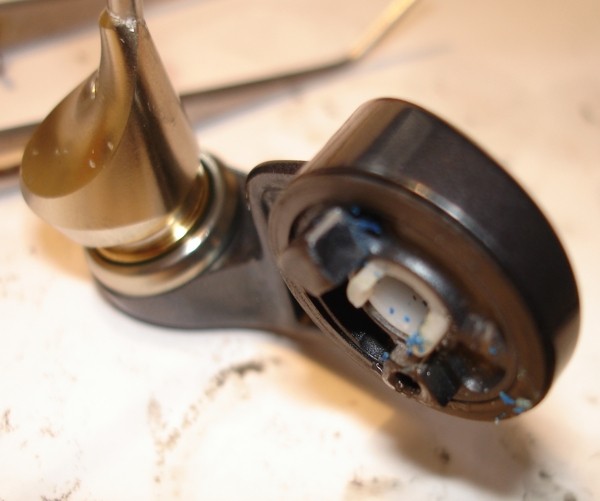

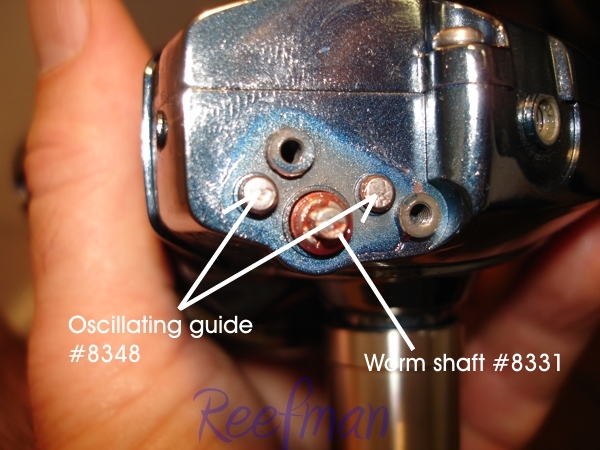

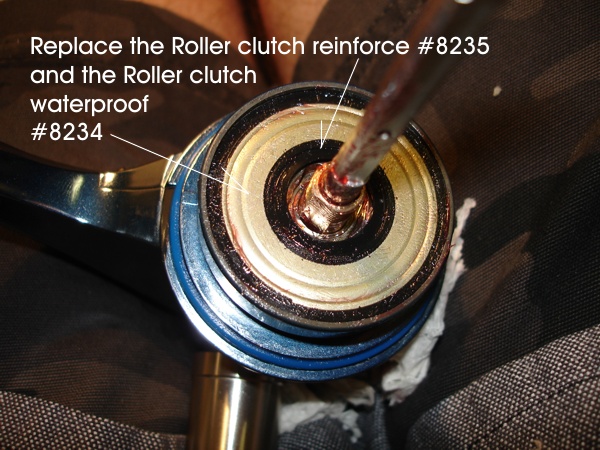

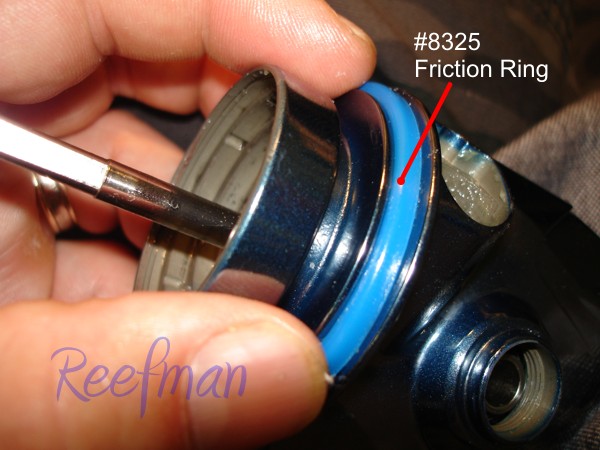

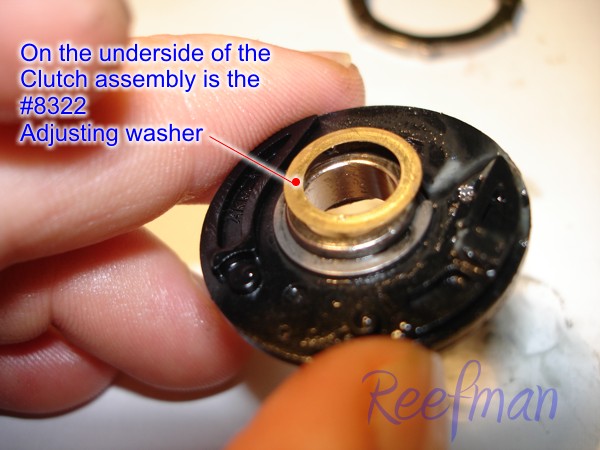

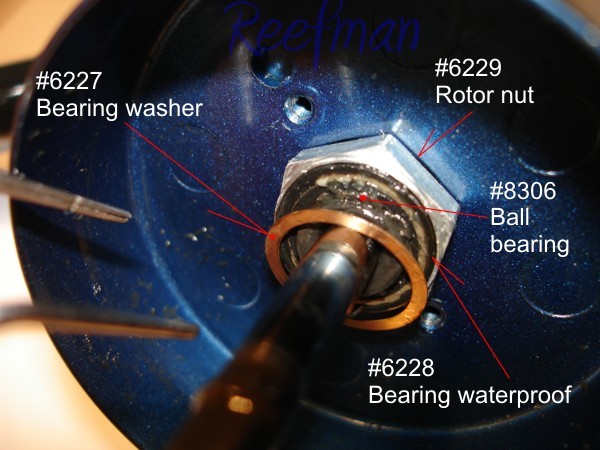

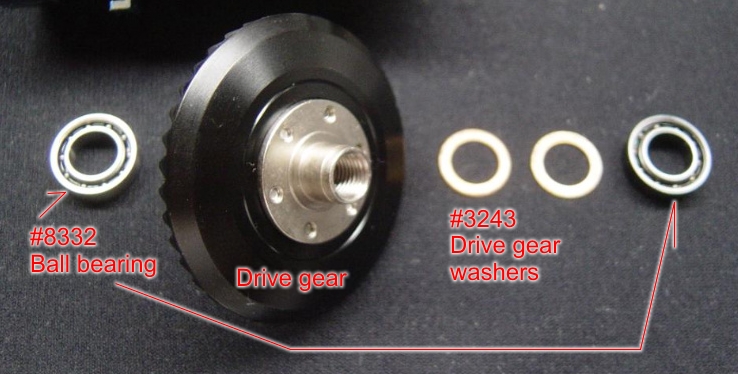

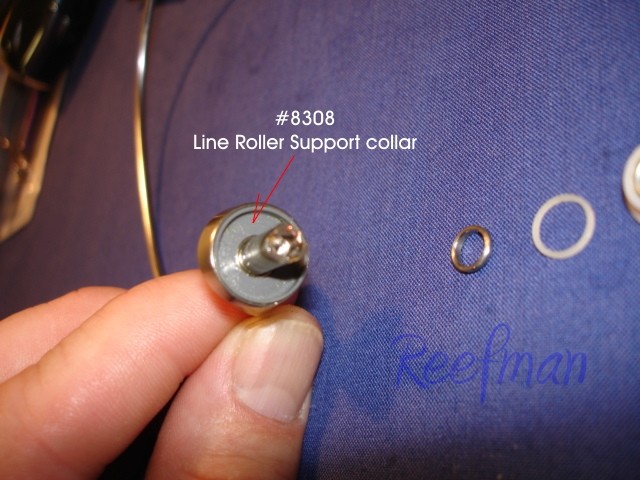

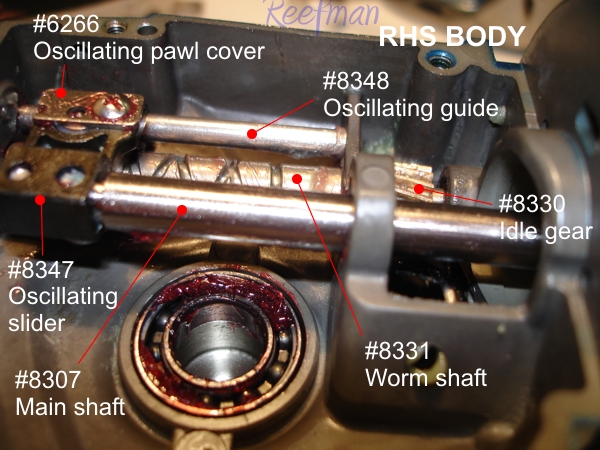

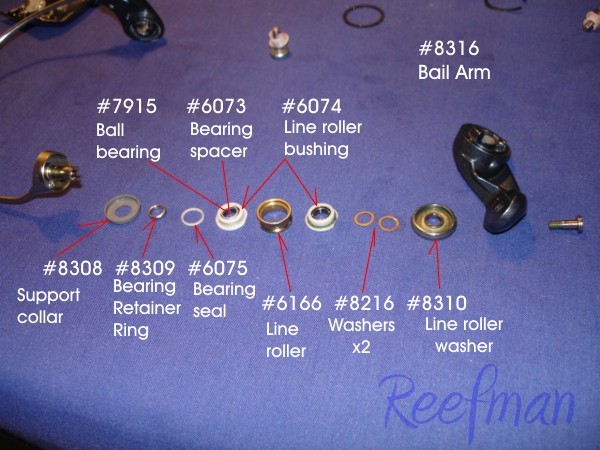

   The Schematics:

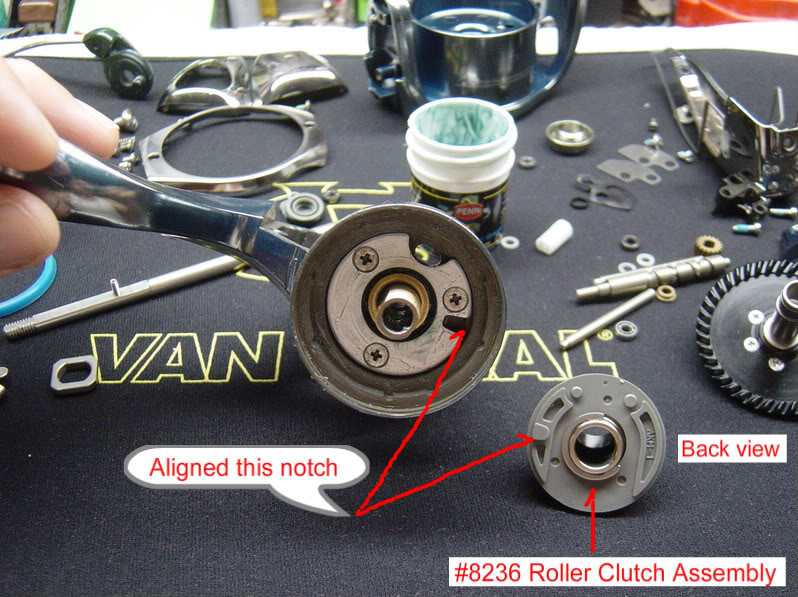

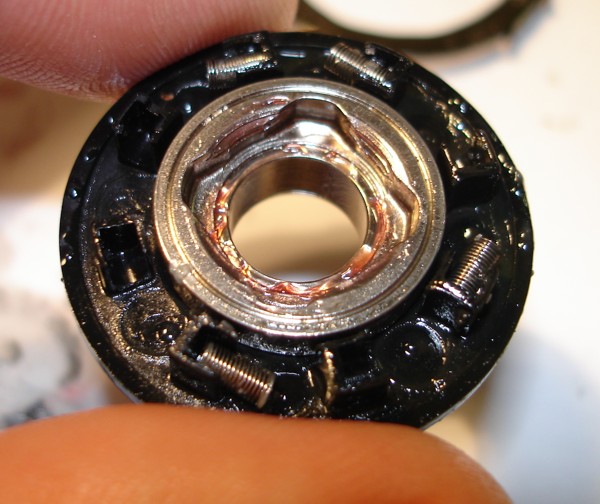

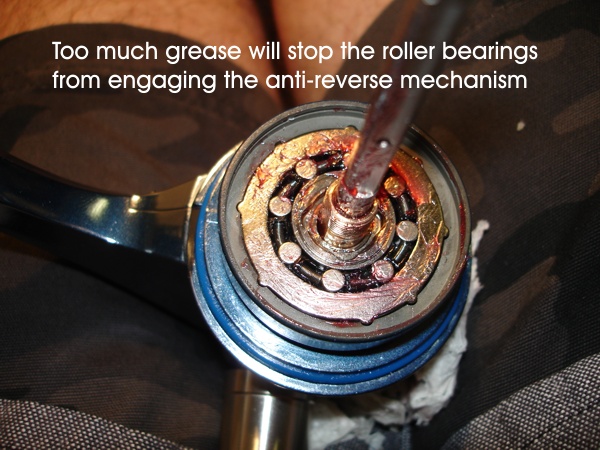

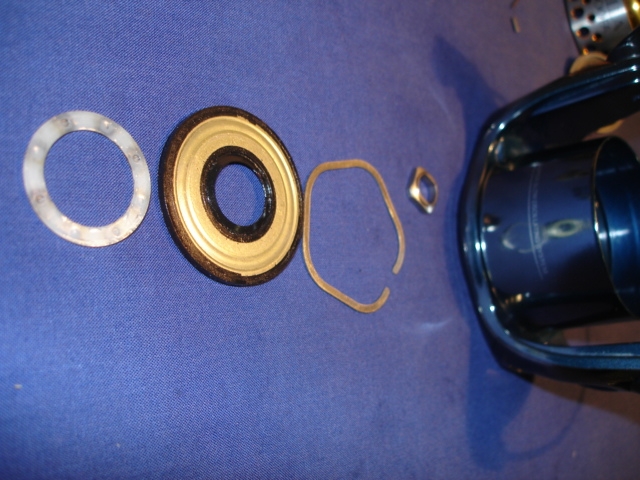

When re-assembling, make sure that the notches align here, otherwise the Anti-reverse won't work!






























































































































Now is not a good time to go fishing... said nobody... EVER!!
