FIN-NOR OF30H SERVICE AND MAINTENANCE TUTORIAL
« on: June 24, 2010, 07:56:05 PM »
.

BEARING SIZES

FIN-NOR OF30H

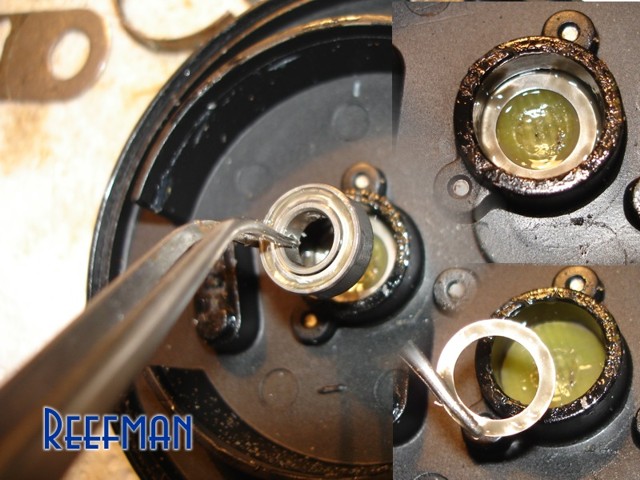

RHSide spool bearing   8x16x5

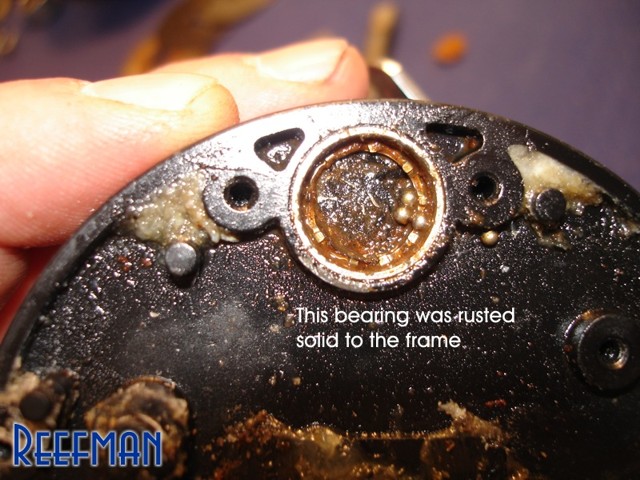

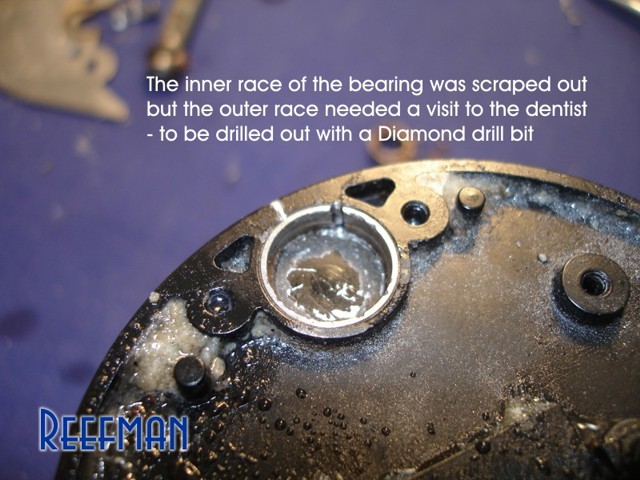

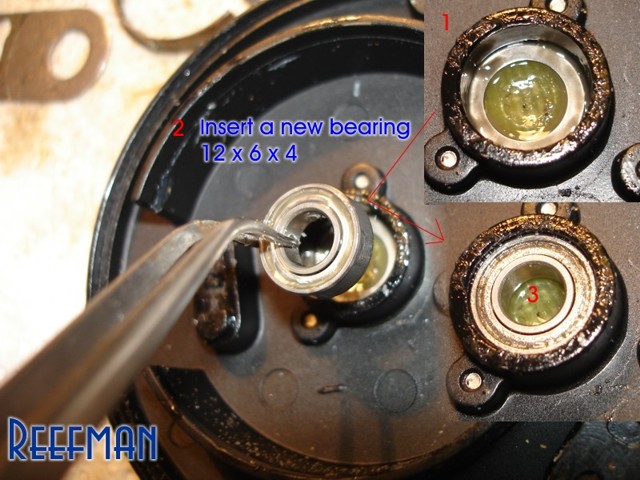

LH Side Plate bearing   6x12x4

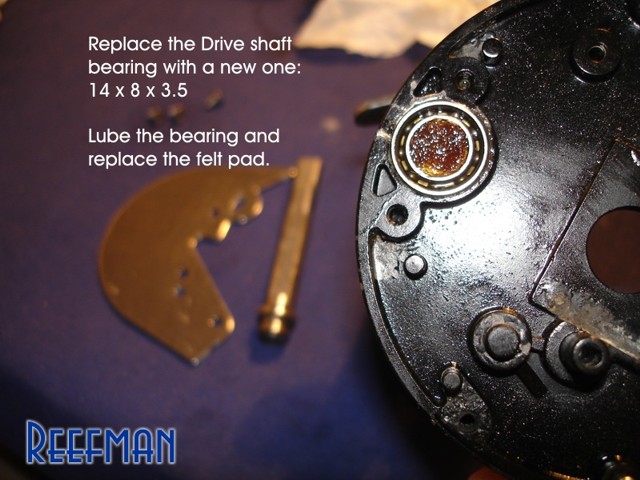

Bottom Drive shaft bearing   8x14x3.5

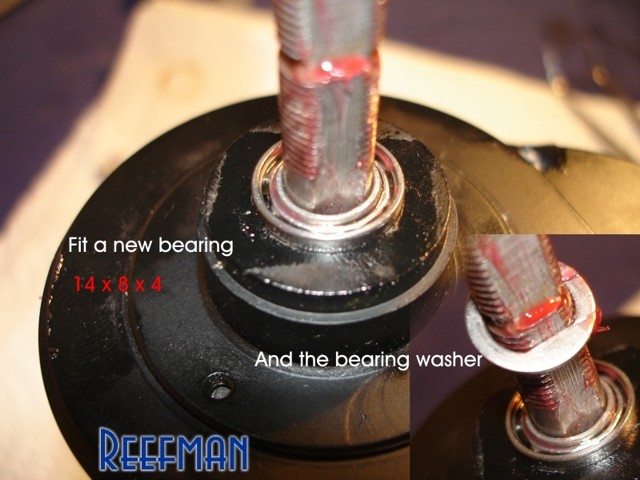

Top Drive shaft bearing   8x14x4

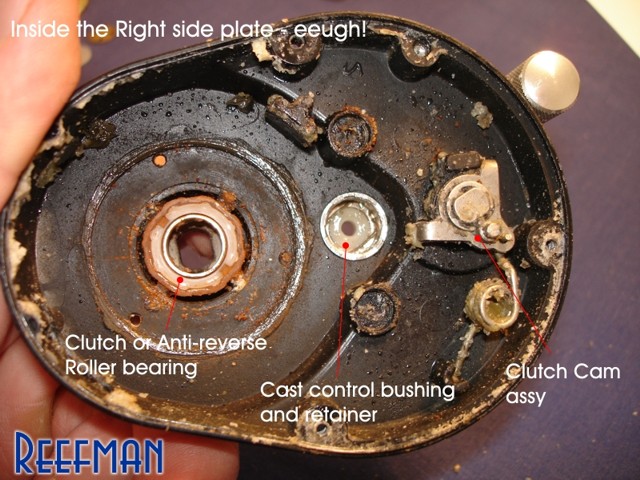

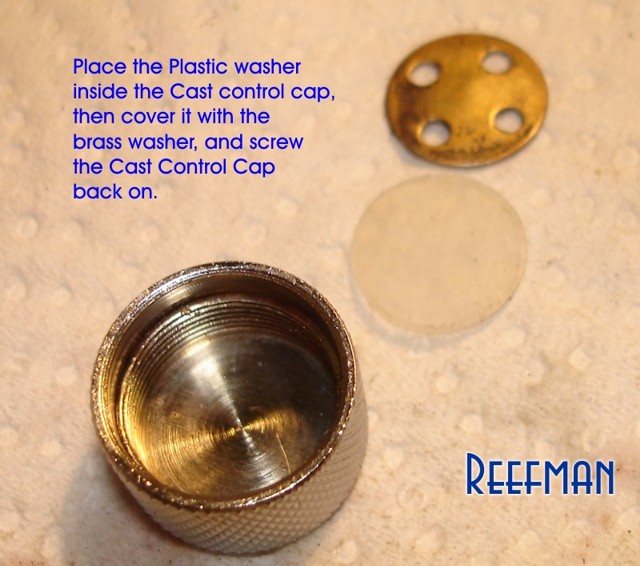

Cast Control bushing   3x8x4

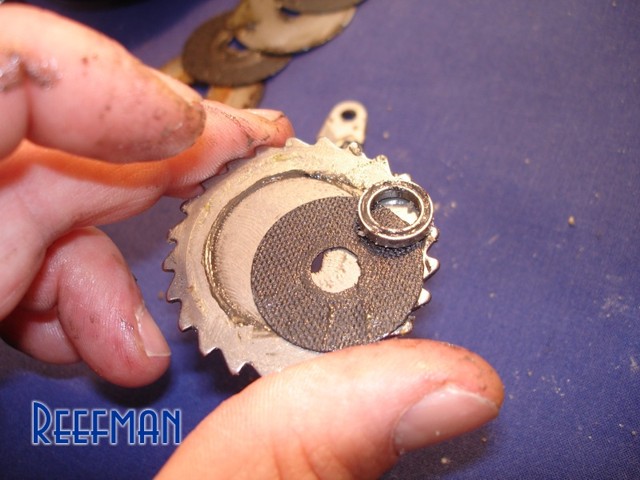

Drive Gear bearing   8x12x2.5






















































































































« Last Edit: July 26, 2010, 01:07:33 PM by REEFMAN »
Logged

Offline Action Man

  • Ultimate member
  • ***
  • Posts: 432
  • Cred: 35
  • Gender: Male
  • Location: Durban
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #1 on: April 22, 2011, 11:02:13 AM »
Where is the facebook 'like' thingy mabob?? haha

I really enjoyed readin this tut  :appr:
Logged
A wise man once told me life is to short for ugly girls and cheap fishing tackle!

Offline Action Man

  • Ultimate member
  • ***
  • Posts: 432
  • Cred: 35
  • Gender: Male
  • Location: Durban
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #2 on: April 22, 2011, 11:04:31 AM »
I found it  :happ:
Logged
A wise man once told me life is to short for ugly girls and cheap fishing tackle!

Offline Half-Pint

  • CHAMPION ANGLER 2014
  • Ultimate Champ
  • ****
  • Posts: 3712
  • Cred: 223
  • Gender: Male
  • Location: Boksburg
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #3 on: July 04, 2011, 07:30:01 AM »
Finally got round to servicing mine and as usual these tuts made it easy as pie. Thanks for another great one Reefz.

Funny thing about the finnor you used in this tut its in similar condition to the torium 30....Looks like someone needs to spend more time servicing reels and less time making us chow :crzy
Logged

Offline Kumz

  • Retired
  • *
  • Posts: 0
  • Cred: 0
  • Gender: Male
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #4 on: July 04, 2011, 09:27:54 AM »
Quote from: Must-Byte on July 04, 2011, 07:30:01 AM
Finally got round to servicing mine and as usual these tuts made it easy as pie. Thanks for another great one Reefz.

Funny thing about the finnor you used in this tut its in similar condition to the torium 30....Looks like someone needs to spend more time servicing reels and less time making us chow :crzy

That reel got damaged n i threw it in garage for 6 months before i gave it to Tony cos i gave up with it ... (bat ...
no more Chow for u ... :hehe: :hehe:
Logged

Offline Half-Pint

  • CHAMPION ANGLER 2014
  • Ultimate Champ
  • ****
  • Posts: 3712
  • Cred: 223
  • Gender: Male
  • Location: Boksburg
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #5 on: July 04, 2011, 10:46:20 AM »
 :shk  I take back my comments! Anything to not miss out on those bunnies
Logged

Offline Kumz

  • Retired
  • *
  • Posts: 0
  • Cred: 0
  • Gender: Male
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #6 on: July 04, 2011, 11:11:20 AM »
Quote from: Must-Byte on July 04, 2011, 10:46:20 AM
:shk  I take back my comments! Anything to not miss out on those bunnies

It's all good ...  :hehe:
Logged

Offline Mikz

  • Member
  • *
  • Posts: 16
  • Cred: 0
  • Gender: Male
  • Location: Durban,KZN
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #7 on: January 01, 2012, 12:15:28 PM »
Hey Reefs who fished this reel so hard and what did they get with it?


I'm asking because I'm thinking about getting one
Thanks

Logged

Offline REEFMAN

  • Ultimate Champ
  • ****
  • Posts: 9767
  • Cred: 768
  • Gender: Male
  • Location: Jozi
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #8 on: January 01, 2012, 12:57:33 PM »
Quote from: Mikz on January 01, 2012, 12:15:28 PM
Hey Reefs who fished this reel so hard and what did they get with it?


I'm asking because I'm thinking about getting one
Thanks

See reply #4... Kumz's reel, the handle broke on the reel.
Logged

Offline craigb

  • Senior Member
  • **
  • Posts: 321
  • Cred: 13
  • i just wanna fish
  • Location: durban
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #9 on: December 01, 2015, 04:17:28 AM »

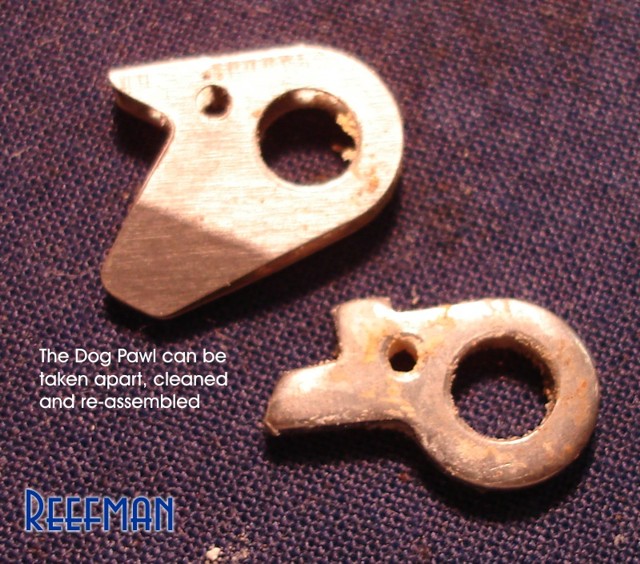

I'm having problems with the anti reverse on my reel...the dog pawl is not sitting properly on the gear...is there a spring or something that holds it in place...very confused.
Logged
I'm not addicted to fishing,i can quit anytime my wife makes me.

Offline REEFMAN

  • Ultimate Champ
  • ****
  • Posts: 9767
  • Cred: 768
  • Gender: Male
  • Location: Jozi
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #10 on: December 01, 2015, 06:35:00 AM »
There's no spring on the Finnor Dog pawl. The beaks of the pawl are maybe bent out? Squeeze them back together?
Logged

Offline craigb

  • Senior Member
  • **
  • Posts: 321
  • Cred: 13
  • i just wanna fish
  • Location: durban
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #11 on: December 01, 2015, 12:41:33 PM »
Thx will try that.
Logged
I'm not addicted to fishing,i can quit anytime my wife makes me.

Offline craigb

  • Senior Member
  • **
  • Posts: 321
  • Cred: 13
  • i just wanna fish
  • Location: durban
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #12 on: December 06, 2015, 11:04:36 AM »
I figured it out...the dog pawl had been installed the wrong way round duh
Logged
I'm not addicted to fishing,i can quit anytime my wife makes me.

Offline REEFMAN

  • Ultimate Champ
  • ****
  • Posts: 9767
  • Cred: 768
  • Gender: Male
  • Location: Jozi
Re: FIN-NOR OF30H SERVICE AND REBUILD
« Reply #13 on: December 06, 2015, 05:29:02 PM »
Quote from: craigb on December 06, 2015, 11:04:36 AM
I figured it out...the dog pawl had been installed the wrong way round duh

Eish.  duh
